TS-Market: Professional miniature digital audio recorder Edic-mini Tiny A22
-
-
-
- Description
-
Modifications: A22-300h, A22-600h, A22-1200h (last digits in the models' names show the maximum recording duration (sampling rate 8 kHz, 2 bit ADPCM) in hours).
Audio recorder A22 features an extremely small size and weight, long record time (up to 600 hours at the sample rate of 8 kHz, and 2 bit ADPCM compression), very low power consumption, wide frequency range (100-10000Hz), wide dynamic range and a highly sensitive built-in microphone. A built-in real time clock and a calendar are provided, as well as the mode of start-up by timer. Due to the absence of moving parts, the DVR functions in a wide temperature range, under vibration and dusty conditions.
The DVR can be connected to PC via USB port with the supplied cable.
The supplied software, working under Windows 2000/XP OS, makes it possible:- to save the recorded messages as standard sound files
- to set the DVR parameters
- to use the DVR as a flash-disc of 128MB-4 GB, depending on a model, as well as to store and transfer files.
- There is an opportunity to update the DVR firmware using the software.
- to save the recorded messages as standard sound files
- Characteristics
-
Height 50 mm Width 26 mm Thickness 8 mm Weight 28 g Case Metal Record time 300h, 600h, 1200h Battery life in record mode 90h Power supply Rechargeable battery Battery life in VAS mode 300h Battery life in stand-by mode 8 months Built-in flash memory 2 Gb, 4 Gb, 8 Gb Interface USB 1.1 Audio recording format Mono Frequency band 100 Hz to 10 kHz Dynamic range -64 dB Sample rate 5.5, 8, 11, 16, 22 Voice Activating System YES Timer recording YES Current consumption 2 mA in recording mode at 3V voltage - Delivery set
-

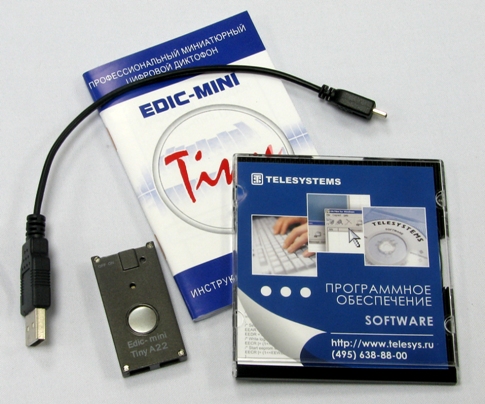

Voice Recorder
USB (1.1) cable
CR2032 rechargeable battery – 2 pieces
Software CD
Instructions
- Accessories
-
External microphone with compressor (+/-6 dB) for the A22, B22, B30 and Solar modelsExternal microphone with compressor (+/-6 dB) for the A22, B22, B30 and Solar models
Price: $ 36.00
Programmed External Microphone with AGC for Tiny, Tiny16Programmed External Microphone with AGC for Tiny, Tiny16
Price: $ 102.00
Edic-mini Tiny A22 |
| Height | 50 mm |
| Width | 26 mm |
| Thickness | 8 mm |
| Weight | 28 g |
| Case | Metal |
| Record time | 300h, 600h, 1200h |
| Battery life in record mode | 90h |
| Power supply | Rechargeable battery |
| Modifications | Unit price | In stock in | Qty | Buy | |
| USA | RF | ||||
