LCD series's been supplemented with a new model, which provides recording onto a replaceable xD flash memory card. Edic-mini LCD xD is powered by a built-in rechargeable battery with up to 90 hours of autonomy operation. A high-speed card reader (USB 2.0 interface) is included into the delivery set.
Modification: Edic-mini LCD xD with changeable xD card.Maximum record duration: depends on the xD flash card capacity.
The main distinctive feature of this model is the ability to record into a replaceable xd card, which is very convenient, as cards are extremely popular when using electronic devices of various kinds. When storing the recorder’s memory you may not download the whole information onto the PC: you can simply replace the card and continue recording. The device is powered by a built-in rechargeable battery providing up to 90 hours of autonomy operation.

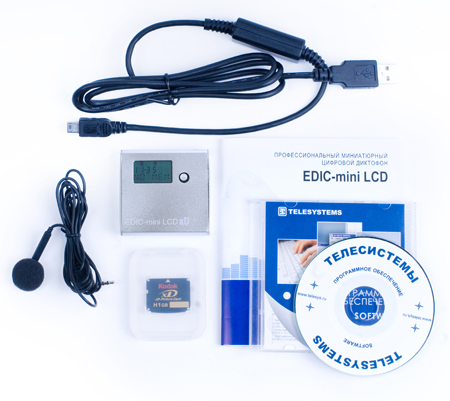

To make your work with the recorder easier we have included “xD card reader” into the delivery set. The device makes it possible to upload the recordings from flash cards onto the PC, as well as to exchange files of any standards between them. The reader supports USB2.0 protocol, providing the maximum of exchange speed with the PC (up to 40 Mb/s)
Distinctive features:
• Dimensions: 51x50x13 mm;
• Weight: 26 g (xD-card not included);
• LCD indicator 22,2x12,9 mm;
• Joystick to control the DVR;
• Power supply: Li-Pol rechargeable battery (battery capacity 950 mAh);
• Battery life in record mode: up to 90 hours;
• Recording into xD picture flash memory card at the memory capacity 1Gb;
• Record time of xD card at the capacity 1 Gb: up to 150 hours;
• Opportunity to use card-reader with USB 2.0 interface at the exchange speed up to 5, 5 Mb/s;
• VAS system to compress pauses when recording;
• Built-in real time clock;
• Timers for automatic scheduled recording;
• Information protection system.
Technical characteristics:
• Battery life in stand-by mode: 2 years;
• Frequency band 100-7500 Hz;
• Signal-to-noise ratio: -72dB;
• Built-In microphone sensitivity: 7-9 m
• Bitrate: 1,5 Mb/s;
• Charging time: from 2 to 3 hours;
• Operating temperature range: -20-50 ˚C
Characteristics
Height
51 mm
Width
50 mm
Thickness
13 mm
Weight
47 g (without xD-card)
Case
Metal
Record time
150h
Battery life in record mode
80h
Power supply
Rechargeable battery
Battery life in stand-by mode
24 months
Built-in flash memory
1 Gb
Compact flash card capacity
xD card 1 Gb
Interface
USB 2.0
Audio recording format
Mono
Frequency band
100-7500 Hz
Dynamic range
-72 dB
Sample rate
4, 8, 16
Voice Activating System
YES
Motion detector
NO
Timer recording
YES
Current consumption
1,5 mA - 3,6 mA (depending on the recording profile)
Software
Manual to
